20 40 60km AOC DAC Cable 10G Bidi SFP Optical Transceiver Single Mode

Product Categories
CFOFC Communications Ltd.
Contact Now

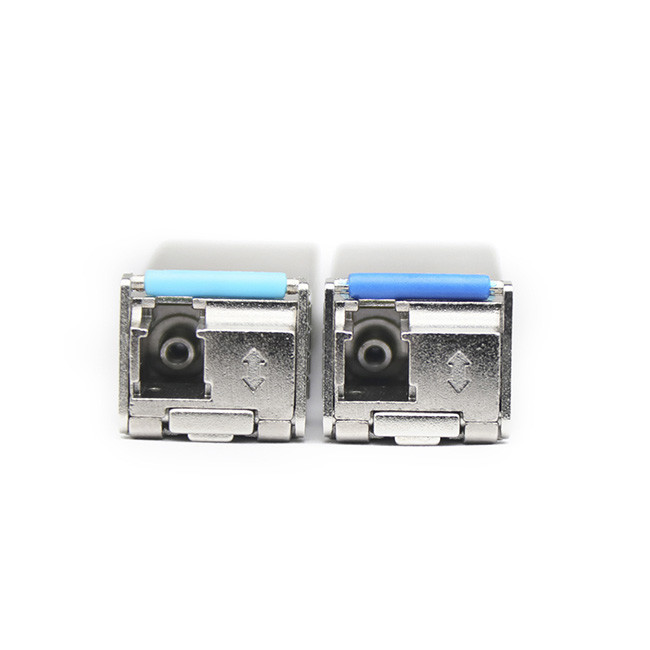

20 40 60km AOC DAC Cable 10G Bidi SFP Optical Transceiver Single Mode

Brand Name : CFOFC

Model Number : CFOFC- 10G SFP+ Bidi 80km

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 30,00000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Product name : 10G Bidi SFP Fiber Optic Transceiver

Application : Telecommunications,FTTH FTTB FTTX Network,Network

Connector type : LC

Data Rate : 10G/s

Wavelength : T1330nm/R1270nm or T1270nm/R1310nm

Transmission Distance : 10km/20km/40km/60km/80km/120km

Contact Now

Fiber Optic Transceiver T1330nm / R1270nm 20/40/60km 10G Bidi SFP Single Mode

Description of Optical Module

BIDI SFP+ Transceivers are Small Form Factor transceiver module. It designed expressly for high-speed communication applicationsthat require rates up to 10.7Gbps,it designed to be compliant with SFF 8472 and SFP+ MSA. The module data link up to 10km or 40km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Specification of Optical Module

Data Rate distance wavelength LD PD Connector DDM
10G 20km T1330/R1270 DFB PIN LC Y
10G 40km T1330/R1270 DFB PIN LC Y
10G 60km T1330/R1270 DFB PIN LC Y

Features of Optical Module

Up to 10,7Gbps Bi-directional Data Links

Compliant with SFP+ MSA with duplex LC connector

1270/1330nm DFB laser Transmitter and 1330/1270nm PIN Receiver

Built-in digital diagnostic functions

Single Mode LC Receptacle Bi-directional Transceiver

Single +3.3V Power Supply and LVTTL Logic

EEPROM with Serial ID Functionality

Case operating temperature range: -5°C to 70°C

Application of Optical Module

Switch to Switch interface

Switched backplane applications

Router/Server interface

Fiber Channel

20 40 60km AOC DAC Cable 10G Bidi SFP Optical Transceiver Single Mode20 40 60km AOC DAC Cable 10G Bidi SFP Optical Transceiver Single Mode20 40 60km AOC DAC Cable 10G Bidi SFP Optical Transceiver Single Mode

The reason why Choose us

1. On time delivery

2. Factory outlet

3. Large product inventory with massive production line

4. Quality guarantee

5. One to one special after-sales service

FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
