Optical MPO Fiber Connector OM3 MTP MPO Loopback SM MM Optic Cable

Product Categories
CFOFC Communications Ltd.
Contact Now

Optical MPO Fiber Connector OM3 MTP MPO Loopback SM MM Optic Cable

Brand Name : CFOFC

Model Number : Optical Fiber Mpo Connector Om3 Mtp

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 3,000,000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Application : Testing applications

Fiber Mode : Multimode/Singlemode

Connector : MPO

Insert- test : 500times, IL<0.5dB

Insertion loss : SM≤0.3dB

No. of Fiber : No. of Fiber: 2.

Contact Now

LC Fiber Optic Multimode Loopback Adapter LC Optical Loopback Testing Cable

Description of Loopback Adapter

12 24 Fiber Optical MTP/MPO Loopback tester
In response to the demand for optical testing of 40GbE and 100GbE applications, DYS has released the 24-fiber
MPO/MTP optical loopback.
The device is available in single mode (yellow) or multimode versions (aqua) and incorporates a rigid, premium quality shell for
fiver protection and durability.Typically used for test and measurement procedures in laboratory and manufacturing environments,
the device is ideal for a multitude of applications require signal looping in a MPO/MTP form factor.

Specification of Loopback Adapter

SPECIFFCATIONS
Type Singlemode Multimode
Insertion loss PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB
Return loss UPC≥ 50dB APC ≥ 60dB -
Repeatability ≤ 0.1db
Changeability ≤ 0.2dB
Working temperature -40 to 8o Celsius
Durability 1000 times
Sustain tension ≥ 100N
Fiber 9/125um , 50/125um, 62.5/125um, OM3 etc
Diameter 0.9mm
Cores duplex
Insertion performance Insert and pull 66 times,1L<0.5db
The tensile resistance 10N
Operation temperature -40℃~ +80℃
Fiber Count 8, 12, 24, 48, 72, 96, 144 cores
Jacket Color Yeloow, Orange, Aqua, Purple
Jacket Material OFNR, OFNP, PVC, LSZH
Storage Temperature -40 to 75℃

Model SM MM
Connector Fiber Count 8, 12, 24 core
Polish PC, APC
Housing Color Standard (green),
Elite (Yellow)		 Standard(Beige)
Elite(Auqa)
Insertion Loss Standard type less than 0.7dB Less than 0.5dB
Insertion loss Elite type Less than 0.35dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB >30dB
Durability (500 matings) less than 0.2dB
Test Eavelength 1310/1550nm 850/1300nm

Features of Loopback Adapter

High quality ferrule

Various test equipment

Low insertion loss

Optical fiber communication system

High return loss

Application of Loopback Adapter

Equipment interconnection

Device pig-tailling

Premise networks

Patch panel applications

Communications connections

LoopBack for network components testing

Data communication network

Optical System Access network

Storage area networking fiber channel

High density architectures

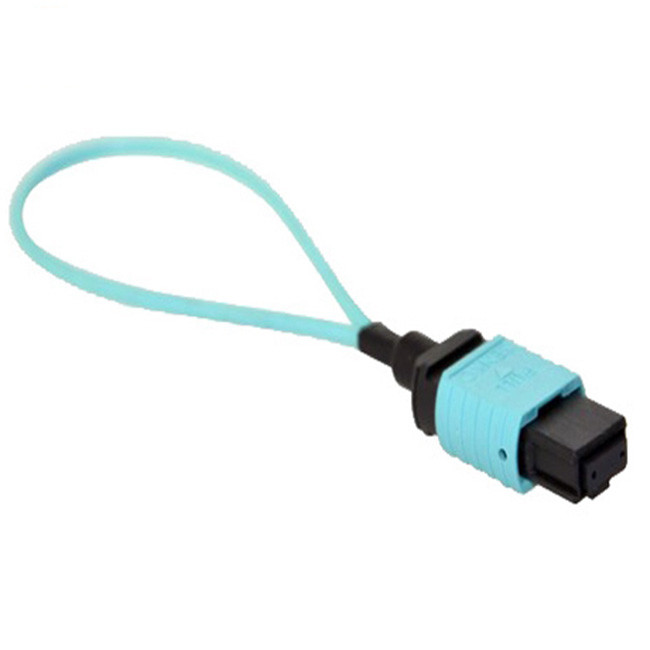

Optical MPO Fiber Connector OM3 MTP MPO Loopback SM MM Optic CableOptical MPO Fiber Connector OM3 MTP MPO Loopback SM MM Optic Cable

The reason why Choose us:

1. On time delivery

2. Factory outlet

3. Customization

4. Large product inventory with massive production line

5. Product distribution involves multi-fields

FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
